Product description
Product Features
Stable pressure, high head
The head of a multistage centrifugal pump can be adjusted by varying the number of pump stages, allowing it to meet different boosting requirements while maintaining a consistently stable pressure over extended periods.

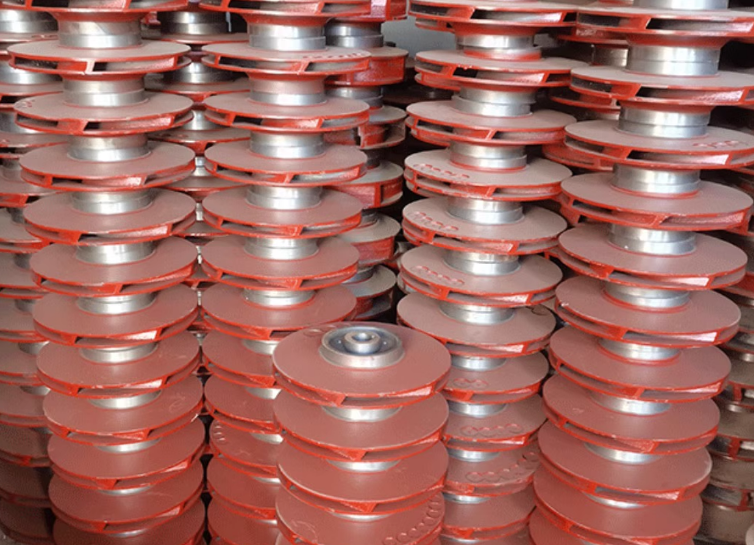

Multi-stage impeller
A multistage centrifugal pump combines two or more identical impellers, with the fluid flow path designed such that the discharge port of the first stage is connected to the inlet of the second stage, and the discharge port of the second stage is linked to the inlet of the third stage—and so on in series—creating a cascaded system that achieves high-head pressurization.

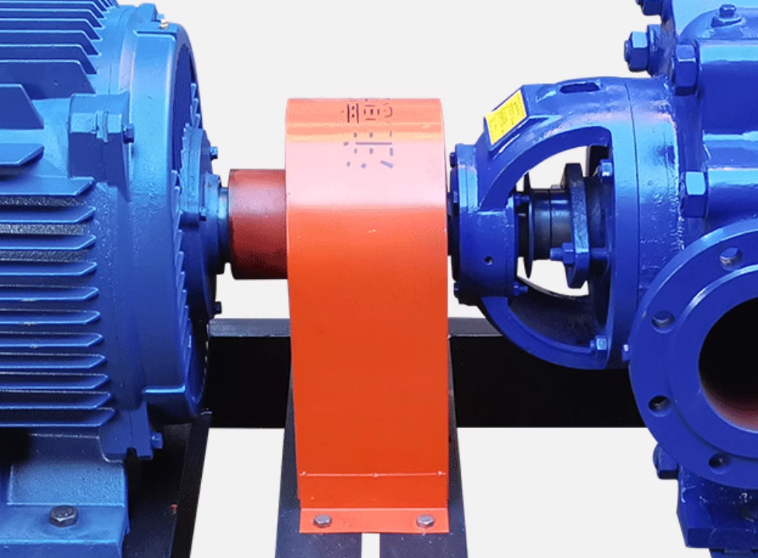

Axial seal is tight.
The multi-stage pump uses a packing seal to tightly close the gap between the pump casing and the pump shaft, preventing water from leaking out of the pump while also blocking outside air from entering. This ensures that the pump maintains a consistent vacuum inside, guaranteeing its smooth and reliable operation.
Wear-resistant bearings
Fast heat dissipation, high-temperature resistance, ideal for multi-stage pumps—features low frictional resistance during high-speed operation, exceptional durability, and minimal maintenance requirements.
Product Specifications
| Model | Flow rate (m³/h) | Head (m) | Motor power (kW) | Inlet size | Outlet size | Suction lift |
| D12-25x3 | 12 | 75 | 7.5 | 50 | 40 | 6-8 meters |
| D12-25x4 | 12 | 100 | 11 | |||
| D12-25x5 | 12 | 125 | 11 | |||
| D12-25x6 | 12 | 150 | 15 | |||
| D12-25x7 | 12 | 175 | 15 | |||
| D12-25x8 | 12 | 200 | 18.5 | |||
| D12-25x9 | 12 | 225 | 18.5 | |||
| D12-25x10 | 12 | 250 | 22 | |||
| D12-25x11 | 12 | 275 | 22 | |||
| D12-25x12 | 12 | 300 | 30 | |||
| D25-30X3 | 25 | 90 | 15 | 65 | 65 | |
| D25-30X4 | 25 | 120 | 18.5 | |||
| D25-30X5 | 25 | 150 | 22 | |||
| D25-30X6 | 25 | 180 | 30 | |||
| D25-30X7 | 25 | 210 | 30 | |||
| D25-30X8 | 25 | 240 | 37 | |||
| D25-30X9 | 25 | 270 | 37 | |||
| D46-30X6 | 46 | 180 | 37 | 80 | 65 | |
| D46-30X7 | 46 | 210 | 45 | |||
| D46-30X8 | 46 | 240 | 55 | |||
| D46-30X9 | 46 | 270 | 55 | |||
| D46-50X6 | 46 | 300 | 75 | 80 | 80 | |
| D46-50X8 | 46 | 400 | 90 | |||
| D46-50X9 | 46 | 450 | 110 | |||
| D85-45X5 | 85 | 225 | 90 | 100 | 100 | 4-6 meters |
| D85-45X6 | 85 | 270 | 110 |
Company Profile
Hebei Jingzheng Pump Industry Co., Ltd. is a company specializing in the production and processing of slurry pumps, mud pumps, mixed flow pumps and other products, and has a complete and scientific quality management system. The integrity, strength and product quality of Hebei Jingzheng Pump Industry Co., Ltd. have been recognized by the industry. Welcome friends from all walks of life to visit, guide and conduct business negotiations.
Customization
Customer Inquiry
Factory Quotation
Customer Orders
Factory Production
Quality Testing
Packaging & Shipping
FAQ
Can you accept small quantities?
Yes, accept small quantity, fast delivery
Do you have pre-shipment inspection procedures?
Yes, we always test the products before delivery.
Can I take samples for testing?
Yes, samples can be sent for testing before bulk ordering.
When is the delivery time?
Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.
What are the terms of payment?
Wire transfer or letter of credit, Western Union, Alipay, etc.
What is the minimum order quantity?
It depends on the product.
Can I have my own custom product?
Yes. oem and odm can be provided, including design, logo, packaging, etc.
